Plot specification curve and analytic choices — plot.specr.object • specr

This function plots visualizations of the specification curve analysis. The function requires an object of class specr.object, usually the results of calling specr() to create a standard visualization of the specification curve analysis. Several types of visualizations are possible.

Usage

# S3 method for class 'specr.object'
plot(
  x,
  type = "default",
  var = .data$estimate,
  group = NULL,
  choices = c("x", "y", "model", "controls", "subsets"),
  labels = c("A", "B"),
  rel_heights = c(2, 3),
  desc = FALSE,
  null = 0,
  ci = TRUE,
  ribbon = FALSE,
  formula = NULL,
  print = TRUE,
  choice_labels = c("right", "left"),
  ...
)

Arguments

x: A specr.object object, usually resulting from calling specr().
type: What type of figure should be plotted? If type = "default", the standard specification curve analysis plot (the specification curve as the upper panel and an overview of the relevant choices as the lower panel) is created. If type = "curve", only the specification curve (upper panel of the default plot) is plotted. If type = "choices", only the choice panel (lower part of the default plot) is plotted. If type = "boxplot", an alternative visualization of differences between choices is plotted that summarizes results per choice using box-and-whisker plot(s). If type = "variance", the variance of the estimates is decomposed into the shares explained by the analytical choices (see formula). If type = "samplesizes", a barplot of sample sizes per specification is plotted. See examples for more information.
var: Which parameter should be plotted in the curve? Defaults to estimate, but other parameters (e.g., p.value, fit_r.squared,...) can be plotted too. Note that the confidence intervals (ci) and the colors always refer to the estimate, so set ci = FALSE for other parameters.
group: Should the arrangement of the curve be grouped by a particular choice? Defaults to NULL, but can be any of the present choices (e.g., x, y, controls...), given unquoted (group = x) or as a string (group = "x").
choices: A vector specifying which analytic choices should be plotted. By default, all choices (x, y, model, controls, subsets) are plotted.
labels: Labels for the two parts of the plot
rel_heights: vector indicating the relative heights of the plot.
desc: Logical value indicating whether the curve should the arranged in a descending order. Defaults to FALSE.
null: Indicate what value represents the 'null' hypothesis (defaults to zero). Specifications whose confidence intervals exclude this value are highlighted (positive = blue, negative = red).
ci: Logical value indicating whether confidence intervals should be plotted.
ribbon: Logical value indicating whether a ribbon instead should be plotted
formula: In combination with type = "variance", you can provide a specific formula to extract specific variance components. The syntax of the formula is based on lme4::lmer() and thus looks something like, e.g.: "estimate ~ 1 + (1|x) + (1|y)" (to estimate the amount of variance explained by different independent x and dependent variables y). All other choices are then subsumed under residual variance. If no formula is provided, all choices (x, y, model, controls, and subsets) that have more than one alternative are included. See examples for further details.
print: In combination with type = "variance", logical value indicating whether the intra-class correlations (i.e., percentages of variance explained by analytical choices) should be printed or not. Defaults to TRUE.
choice_labels: Where should the names of the analytical choices (x, y, model, ...) be shown in the panel of choices (type = "default" or "choices")? Either "right" (default) or "left", next to their options.
...: further arguments passed to or from other methods (currently ignored).

Value

A ggplot object that can be customized further.

Examples

# \donttest{
# Specification Curve analysis ----
# Setup specifications
specs <- setup(data = example_data,
   y = c("y1", "y2"),
   x = c("x1", "x2"),
   model = "lm",
   controls = c("c1", "c2"),
   subsets = list(group1 = unique(example_data$group1),
                  group2 = unique(example_data$group2)))

# Run analysis
results <- specr(specs)

# Resulting data frame with estimates
as_tibble(results)  # This will be used for plotting
#> # A tibble: 192 × 28
#>    x     y     model controls subsets group1 group2 formula model_function term
#>    <chr> <chr> <chr> <chr>    <chr>   <fct>  <fct>  <glue>  <list>         <chr>
#>  1 x1    y1    lm    no cova… middle… middle female y1 ~ x… <fn>           x1
#>  2 x1    y1    lm    no cova… old & … old    female y1 ~ x… <fn>           x1
#>  3 x1    y1    lm    no cova… young … young  female y1 ~ x… <fn>           x1
#>  4 x1    y1    lm    no cova… female  NA     female y1 ~ x… <fn>           x1
#>  5 x1    y1    lm    no cova… middle… middle male   y1 ~ x… <fn>           x1
#>  6 x1    y1    lm    no cova… old & … old    male   y1 ~ x… <fn>           x1
#>  7 x1    y1    lm    no cova… young … young  male   y1 ~ x… <fn>           x1
#>  8 x1    y1    lm    no cova… male    NA     male   y1 ~ x… <fn>           x1
#>  9 x1    y1    lm    no cova… middle  middle NA     y1 ~ x… <fn>           x1
#> 10 x1    y1    lm    no cova… old     old    NA     y1 ~ x… <fn>           x1
#> # ℹ 182 more rows
#> # ℹ 18 more variables: estimate <dbl>, std.error <dbl>, statistic <dbl>,
#> #   p.value <dbl>, conf.low <dbl>, conf.high <dbl>, fit_r.squared <dbl>,
#> #   fit_adj.r.squared <dbl>, fit_sigma <dbl>, fit_statistic <dbl>,
#> #   fit_p.value <dbl>, fit_df <dbl>, fit_logLik <dbl>, fit_AIC <dbl>,
#> #   fit_BIC <dbl>, fit_deviance <dbl>, fit_df.residual <int>, fit_nobs <int>


# Visualizations ---
# Plot results in various ways
plot(results)                            # default

plot(results, choices = c("x", "y"))     # specific choices

plot(results, ci = FALSE, ribbon = TRUE) # exclude CI and add ribbon instead

plot(results, type = "curve")

plot(results, type = "choices")

plot(results, type = "samplesizes")

plot(results, type = "boxplot")


# Names of the choices on the left, next to their options
plot(results, choice_labels = "left")



# Grouped plot
plot(results, group = controls)


# Alternative and specific visualizations ----
# Other variables in the resulting data set can be plotted too
plot(results,
     type = "curve",
     var = fit_r.squared,   # extract "r-square" instead of "estimate"
     ci = FALSE)


# Such a plot can also be extended (e.g., by again adding the estimates with
# confidence intervals)
library(ggplot2)
plot(results, type = "curve", var = fit_r.squared) +
  geom_point(aes(y = estimate), shape = 5) +
  labs(x = "specifications", y = "r-squared | estimate")


# We can also investigate how much variance is explained by each analytical choice
plot(results, type = "variance")
#> boundary (singular) fit: see help('isSingular')
#>        grp vcov  icc percent
#> 1  subsets 0.00 0.00    0.00
#> 2 controls 0.00 0.00    0.41
#> 3        y 0.16 0.83   83.34
#> 4        x 0.00 0.01    0.57
#> 5 Residual 0.03 0.16   15.69


# By providing a specific formula in `lme4::lmer()`-style, we can extract specific choices
# and also include interactions between choices
plot(results,
     type = "variance",
     formula = "estimate ~ 1 + (1|x) + (1|y) + (1|group1) + (1|x:y)")
#> boundary (singular) fit: see help('isSingular')
#>        grp vcov  icc percent
#> 1      x:y 0.05 0.26   26.28
#> 2   group1 0.00 0.01    0.79
#> 3        y 0.13 0.69   69.50
#> 4        x 0.00 0.00    0.00
#> 5 Residual 0.01 0.03    3.43

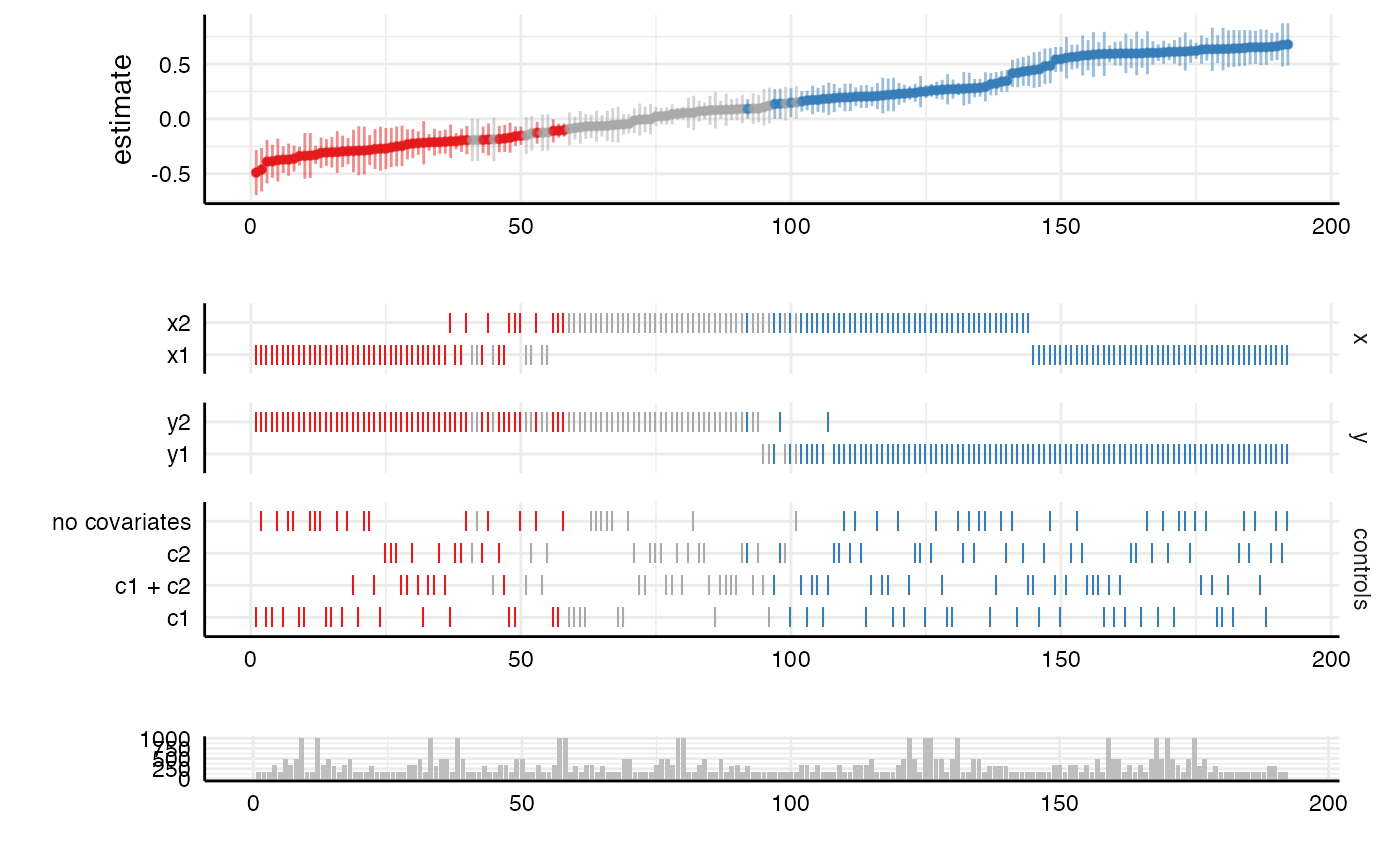

## Combining several plots ----
# `specr` also exports the function `plot_grid()` from the package `cowplot`, which
# can be used to combine plots meaningfully
a <- plot(results, "curve")
b <- plot(results, "choices", choices = c("x", "y", "controls"))
c <- plot(results, "samplesizes")
plot_grid(a, b, c,
          align = "v",
          axis = "rbl",
          rel_heights = c(2, 3, 1),
          ncol = 1)

# }
